In wood-based panel production, chip screening is responsible for preparing raw material for the next processing stage.
The objective is not simply to separate large and small particles.
A well-designed screening system needs to create several controlled fractions, remove unwanted material and direct each fraction toward the appropriate downstream process.
In a Dynascreen / Chips Screen, different roll profiles perform different screening functions. The official Dynascreen specification identifies W-Rolls for very fine and dusty material, V-Rolls for flakes and micro chips, and D-Rolls for oversize pieces.
Among these components, the D Roller plays a specific role that should not be confused with the V Roller.
Its job is to deal with material that is too large to enter the intended chip fraction.
The D Roller, also known as a D-Roll, is a rotating roll component used in Dynascreen-type roller screening systems.
Its primary function is to handle oversize wood chips and large pieces that do not belong in the required particle fraction.
According to Imalpal's Dynascreen information, D-Rolls are specifically designed to remove oversize pieces from the material stream.
This gives the D Roller a different task from the V Roller.
The V Roller focuses on smaller fractions such as flakes and micro chips, while the D Roller manages material at the oversized end of the screening range.
Oversize chips can create problems when they continue into processes designed for smaller and more uniform particles.
Large pieces may affect:
The purpose of the screening section is therefore not merely to “remove large chips”.
It is to control the particle flow before the material reaches the next stage of production.
The Dynascreen system can separate multiple fractions, with the number and size of fractions adjustable through the machine configuration. Its technical description states that the system can separate material into 2 to 5–6 fractions, depending on the arrangement.
This distinction is especially important when purchasing spare parts.

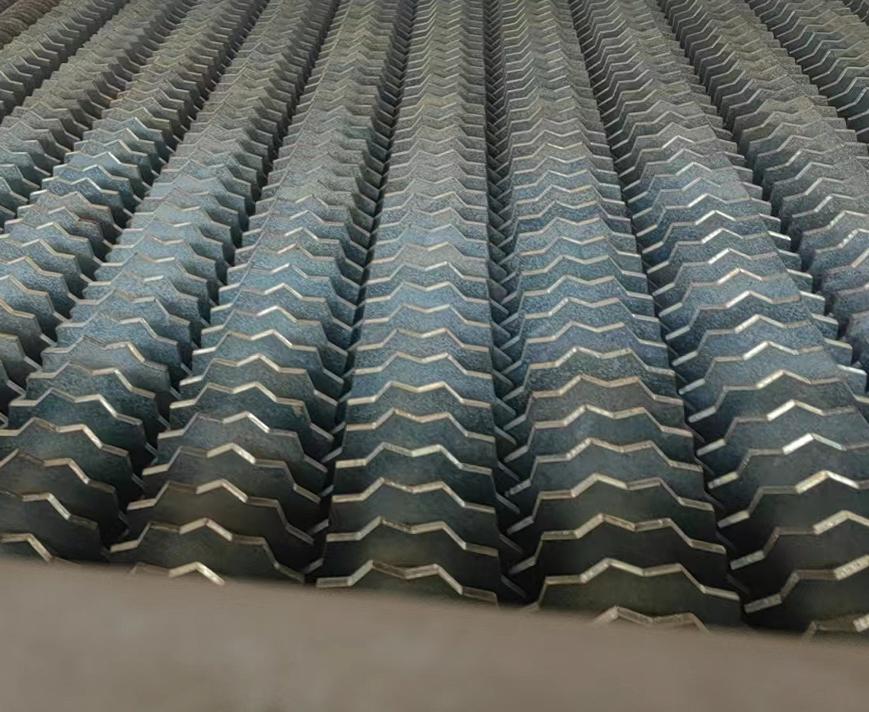

The V-Roll is associated with flakes and micro chips and contributes to controlled screening of these fractions.
The D-Roll is associated with oversize pieces and helps move oversized material toward the relevant discharge route.
The two rollers are therefore not interchangeable simply because both belong to the same screening machine.
Their profiles, operating position and screening function are different.
For maintenance and spare-part purchasing, identifying the correct roll type is essential.

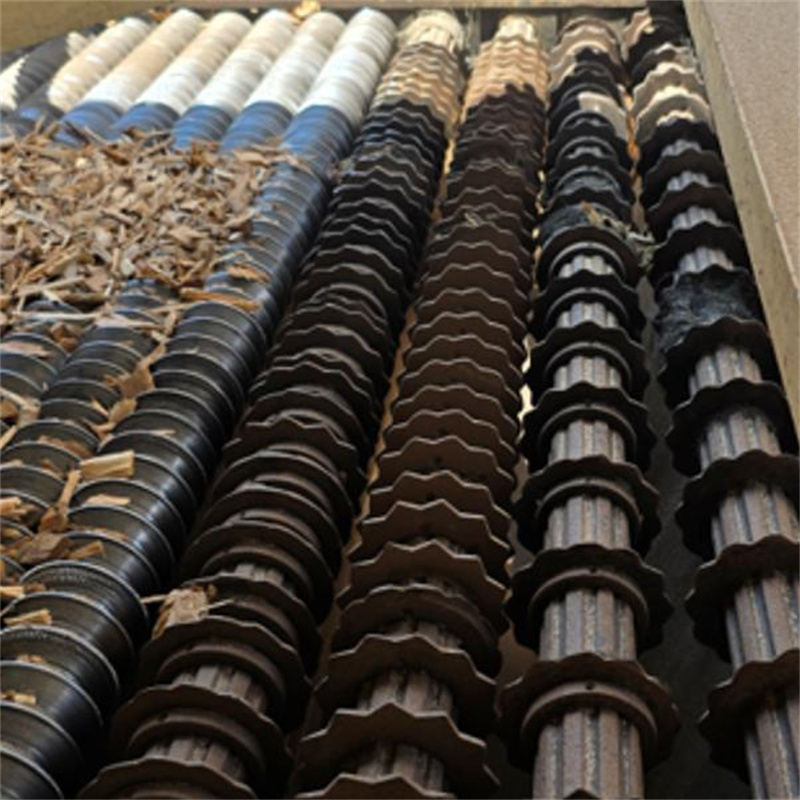

A Dynascreen uses an arrangement of profiled rotating rolls rather than a conventional static flat screen.
Material enters the screening deck and moves across the rotating roll surfaces.
The interaction between the different profiles influences how particles move through the screening area.
The manufacturer describes the interlocking W and V profiles as creating a zigzag channeling effect, helping align material flow with the screening gaps and improving particle vibration and screening efficiency. The W and V profiles also support calibration of particle thickness and length.

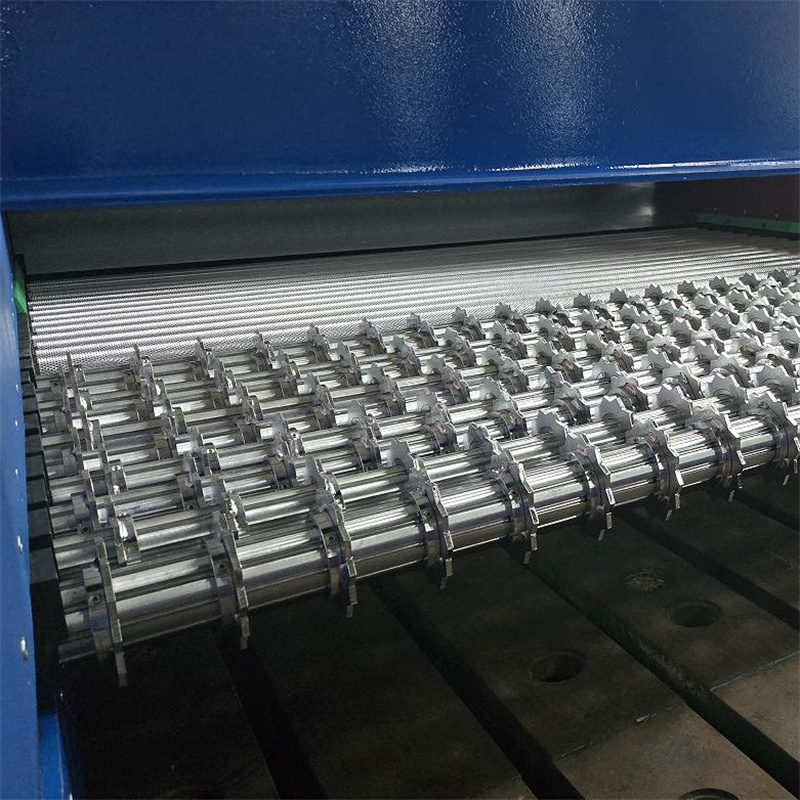

The D Roller belongs to this larger screening arrangement and is positioned to deal with the oversized fraction.
Its function is therefore connected not only to the roll itself, but also to the overall relationship between:
Material Feed + Roll Arrangement + Screening Gaps + Roll Speed + Discharge Configuration
It can be tempting to regard an oversize roll simply as a transport element.
That description is incomplete.
The D Roller operates within a screening environment, where its shape and relationship with neighboring components influence how oversized material is handled.
A properly maintained D Roller helps ensure that:
Therefore, its value comes from both its mechanical movement and its screening function.
Wood chips are abrasive materials.
A D Roller can therefore experience continuous surface wear during production.
Over time, wear may affect:
When the working profile changes significantly, the roller may no longer behave in the same way as the original design.
This is why D Roller inspection should be included in routine Dynascreen maintenance.
A gradual decline in screening performance can sometimes be related to worn or damaged roll components.
Operators should pay attention to:
If large pieces are not being transported or discharged as expected, the D Roller should be inspected.
Unexpected buildup may indicate changes in the roll surface, gap arrangement or material flow.
Different wear levels between rollers may indicate uneven material loading or an underlying mechanical issue.
Deep scoring, deformation or excessive rounding can affect the original working geometry.
If operators need increasingly frequent adjustment to maintain the same screening behavior, the roll condition should be checked.
These symptoms can also have other causes, including feed distribution, particle properties, roll spacing and machine settings, so D Roller wear should be evaluated as part of the complete system rather than in isolation.
The D Roller operates in a high-wear environment, so construction quality is important.
For the Dynascreen system, the manufacturer specifically lists chrome plating or nitriding for W and V profiles as an available feature.
For D Roller replacement parts, the appropriate material and surface treatment should be selected according to the machine design and actual working conditions.
A replacement part should balance:
Wear Resistance + Dimensional Accuracy + Profile Stability + Mechanical Reliability
Simply choosing the hardest available material does not automatically guarantee the best screening performance.
The geometry must remain correct throughout service.
Screening depends on controlled relationships between adjacent rollers.
The machine uses freely adjustable gaps to determine the separation behavior of different fractions. Imalpal identifies adjustable roll gaps and discharge flaps as key Dynascreen features for changing fraction sizes and the number of fractions.
This means that a replacement D Roller needs to match the original mechanical configuration.
Important dimensions may include:
A small dimensional mismatch may affect the relationship between the roller and adjacent components.
For this reason, replacement should be based on machine-specific information rather than the name “D Roller” alone.
In many wood-based panel processes, oversized material is not necessarily waste.
Large chips may be routed back for re-crushing or further processing, depending on the production-line design.
HUATAO's Dynascreen product information describes the D-Roll as handling oversize wood chips and routing large pieces toward re-crushing.
This makes the D Roller part of a broader raw-material utilization strategy.
Instead of allowing unsuitable large particles to continue downstream, the screening system can separate them and direct them toward an appropriate recovery route.
That can help maintain more consistent particle specifications for subsequent processing.
Dynascreen systems are used in wood-based panel applications including Particle Board / SPB and MDF/HDF, according to the equipment manufacturer's current product information.
The exact screening configuration depends on the raw material, target fractions, machine width and production requirements.
HUATAO lists D Roll, V Roll and W Roll as spare-part options for its Dynascreen-related chips screening equipment, with machine configurations including 1000 mm, 1500 mm and 2200 mm widths.
This makes the D Roller relevant not only as a standalone spare part, but as part of the complete chip-preparation and screening system.
To reduce the risk of replacement-parts mismatch, customers should provide as much technical information as possible.
Recommended information includes:
Machine brand and model
Screen width
D Roller length
Roller diameter
Shaft dimensions
D profile dimensions
Number of rollers
Number of discs or sections, where applicable
Original part photographs
Technical drawing
Existing identification number
With these details, the supplier can better identify the correct configuration.
HUATAO supplies spare parts for Chips Screen and Dynascreen systems, including:
D Roller
D Roll Plate
V Roller
V Roll Plate
W Roller
and related screening components.
HUATAO's current published product information lists D Roll, V Roll and W Roll as spare-part options for Dynascreen chip-screening equipment used in MDF and Particle Board preparation sections.
For customers replacing worn D Rollers, HUATAO can work from machine information, original samples, technical drawings or photographs to support customized spare-part matching.
A stable chip-screening process requires every fraction to move toward the correct destination.
The D Roller focuses on the oversized fraction, but its contribution is connected to the performance of the entire Dynascreen.
W-Rolls handle very fine and dusty material.
V-Rolls handle flakes and micro chips.
D-Rolls handle oversize pieces.
Together, these components create a coordinated screening process.
This is why replacing a worn D Roller is not simply a matter of restoring one mechanical part.
It is about restoring the intended relationship between particle flow, screening gaps and fraction discharge.
HUATAO provides D Rollers, D Roll Plates, V Rollers, V Roll Plates, W Rollers and other spare parts for wood-based panel chip-screening equipment.
For MDF, HDF, Particle Board and related wood-based panel production lines, HUATAO supports customers with replacement and customized screening components according to machine configuration and technical requirements.
When a Dynascreen begins to show unstable oversize handling or increased wear, checking the condition and dimensions of the D Roller should be part of the maintenance process.
The right replacement is not simply a new roller.
It is a roller with the correct profile, dimensions, material and machine compatibility.
