In a modern wood-based panel production line, chip screening is one of the important steps between raw-material preparation and downstream processing.
The purpose of the screening section is not simply to remove unwanted material.
It is to create a more controlled particle stream by separating different fractions according to size and characteristics.

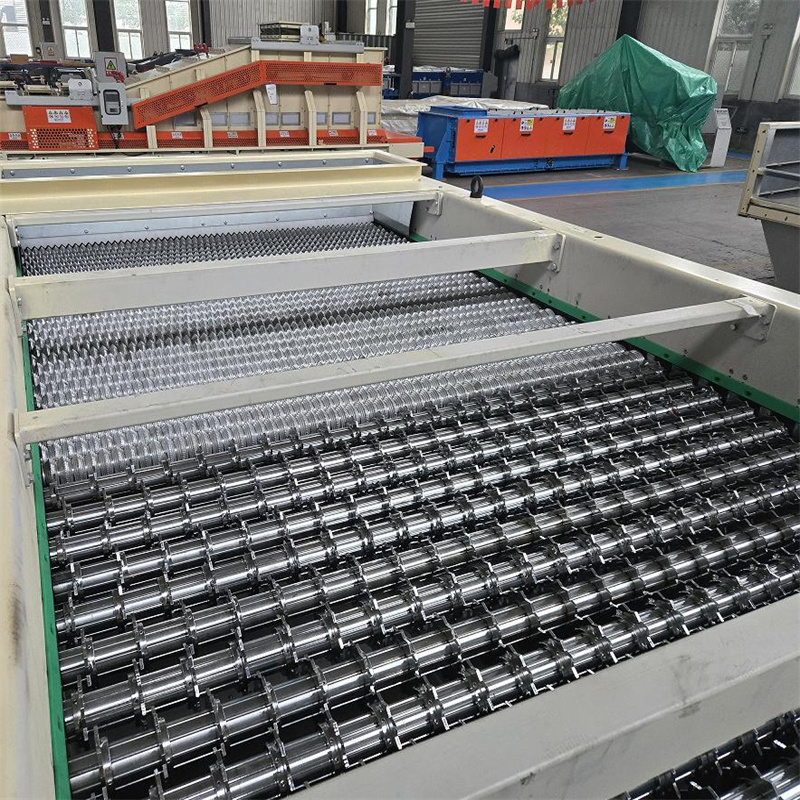

In a Dynascreen roll screen, different roll profiles are assigned different screening functions. The system uses W-Rolls, V-Rolls and D-Rolls to process fine material, flakes and micro chips, and oversized pieces respectively.
Among these components, the V Roller and its associated V Roll Plate / V Disc are particularly important for the screening of flakes and small wood chips.
Although they are relatively small compared with the complete screening machine, their profile condition can influence the material flow, screening gap and
classification performance.
The V Roller is a profiled rotating screening component installed in a Dynascreen-type roll screen.
Its main function is related to the separation and conveying of flakes and micro chips.
Unlike a conventional flat screen surface, the special roll geometry creates an active screening zone in which the material is continuously moved, lifted, vibrated and guided through the gaps between adjacent rolls.
The manufacturer describes the V-Rolls as components used to remove flakes and micro chips, while the W-Rolls handle very fine and dusty material and D-Rolls discharge oversized pieces.
This means the V Roller is not simply a rotating shaft.
Its profile geometry is part of the screening process.

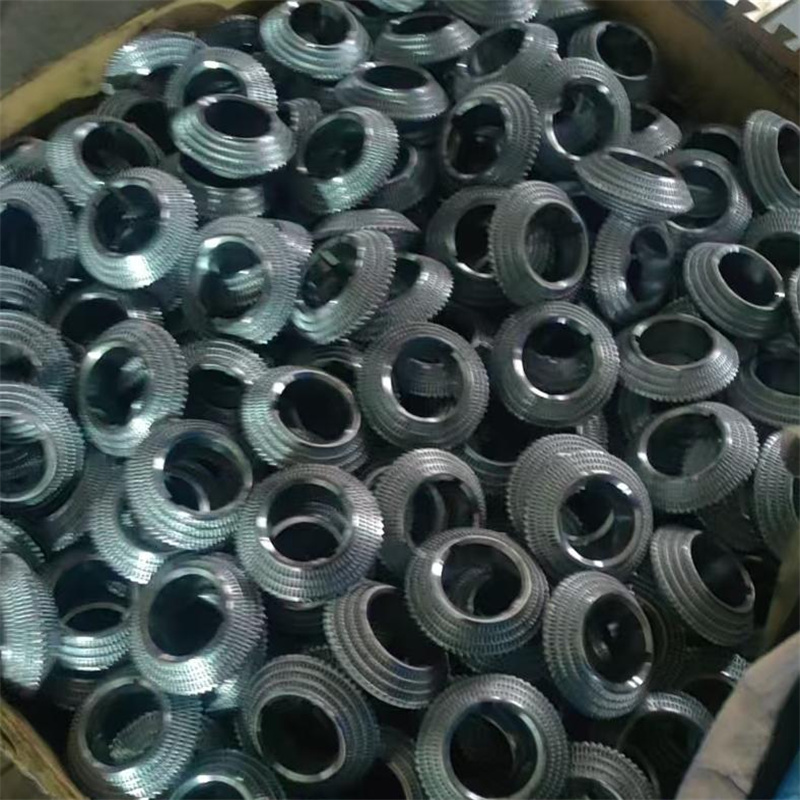

The term V Disc or V Roll Plate is commonly used for the shaped wear components forming the working profile of the V Roller.
HUATAO supplies Dynascreen-related spare parts including V Roller, V Roll Plate, D Roller and other roll-screen components for wood-based panel applications.
The working profile of the V component determines how material interacts with the screening surface.
During operation, the V profile is continuously exposed to:
Over time, the profile can become worn.
When the original geometry changes, the screening characteristics can also change.

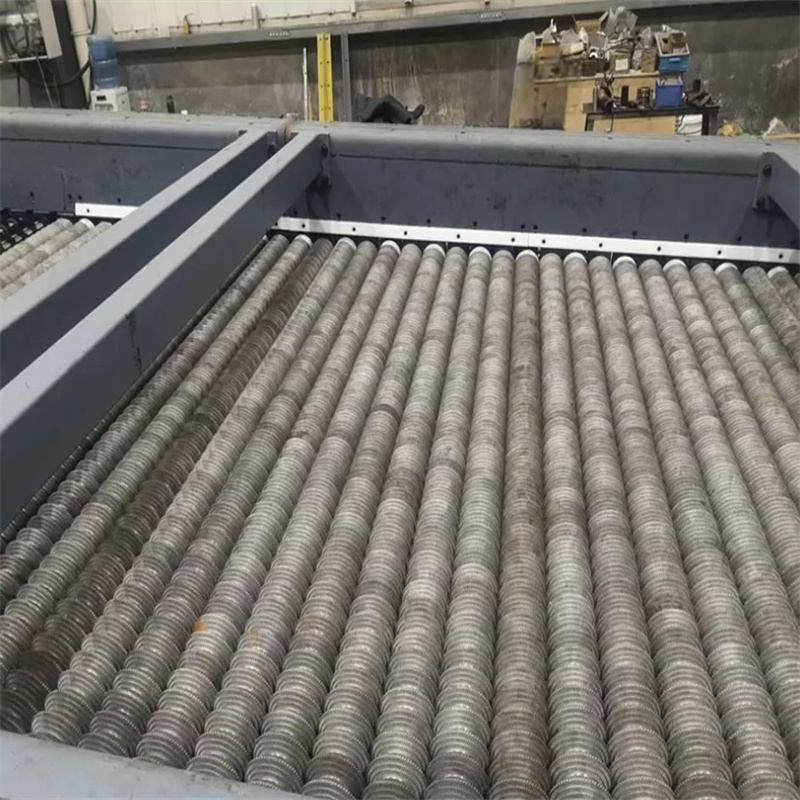

A Dynascreen does more than transport wood chips.
Its roll arrangement creates controlled openings through which different particle fractions are separated.
The original Dynascreen design uses interlocking W and V roll profiles to create a zigzag channeling effect, guiding material flow along the screening gaps and improving particle vibration and screening efficiency. The manufacturer also states that W and V profiles contribute to better calibration of particle thickness and length.
This explains why the condition of the V Roller matters.
A worn or incorrectly manufactured profile can potentially affect:
Screening gap → Material trajectory → Particle movement → Fraction separation
In other words, a small change in the working profile may have a larger influence on the overall screening process.
V Rollers operate continuously and are exposed to abrasive wood material.
Typical signs of excessive wear may include:
The material may not separate consistently across the screening width.
Wear can alter the effective geometry between adjacent rolls.
More material may enter the wrong fraction.
The original flow pattern may gradually change as the profile becomes less defined.
Operators may need more frequent adjustment to maintain acceptable screening results.
These symptoms do not automatically mean that the V Roller is the only cause, because screening performance also depends on material characteristics, roll spacing, speed, inclination and other machine conditions.
However, the V profile should be included in any inspection when screening quality declines.
For customers looking for replacement parts, these terms can sometimes be confusing.
In practical product discussions:
V Roller refers to the complete rotating screening roller or roller assembly.
V Disc / V Roll Plate refers to the profiled working components associated with the roller.
The exact construction can vary according to the machine design and spare-part configuration.
Therefore, when ordering replacement parts, it is better to confirm the machine model, roller dimensions, profile, number of discs/plates and installation arrangement rather than relying on the product name alone.
This is particularly important when replacing parts on existing Dynascreen equipment.

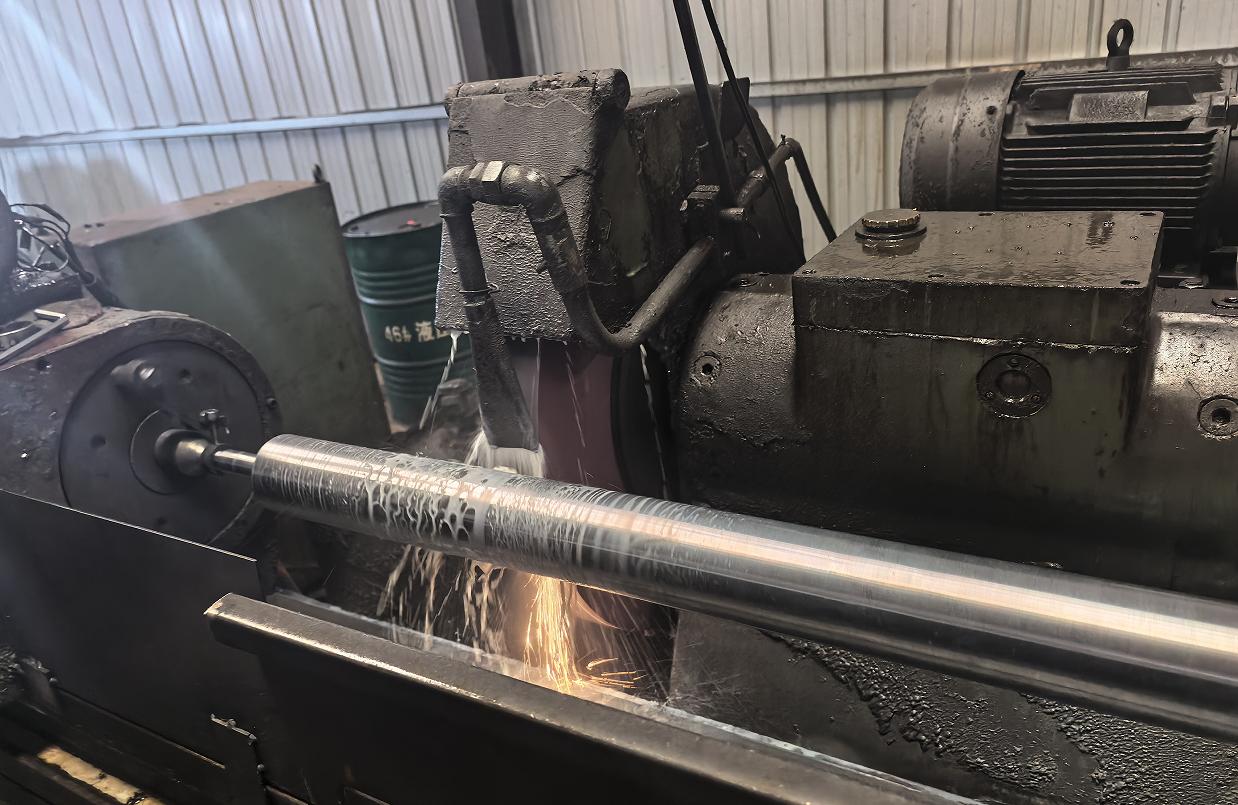

A V Roller for wood-chip screening needs to withstand continuous abrasion.
For this reason, surface treatment and material selection are important.
Public Dynascreen specifications indicate that the W and V profiles may be supplied with chrome plating or nitriding to improve the working characteristics of the screening surfaces.
However, wear resistance by itself does not define a good V Roller.
The replacement part should also maintain:
The objective is to reproduce stable screening performance, not simply to install a harder component.
Regular inspection can help identify wear before it develops into a larger screening problem.
Look for rounding, deformation or visible loss of the original shape.
Verify that the working gap remains within the required operating range.
Inspect for severe scoring, abnormal abrasion or coating damage.
The V Roller cannot work correctly if the rotating assembly is unstable.
Uneven feeding can accelerate localized wear.
If one roller shows significantly different wear from neighboring components, investigate the cause rather than replacing it without checking the system.
One common maintenance issue is replacing an individual V component without checking the surrounding screening arrangement.
However, Dynascreen performance depends on the relationship between multiple rotating profiles.
The system contains:
W-Rolls → V-Rolls → D-Rolls
and may also include adjustable gaps, one or two screening decks, discharge flaps and integrated suction systems.
Therefore, when a V Roller is replaced, operators should also check:
A replacement component works best when the complete screening arrangement is correctly maintained.
Dynascreen technology is used in wood-based panel applications including Particle Board / SPB and MDF/HDF, as well as other wood-related material processing applications.
Within particleboard production, chip preparation quality is closely linked to the consistency of the material entering downstream processes.
The V Roller therefore plays a practical role in controlling the fraction containing flakes and micro chips.
For MDF/HDF applications, screening requirements can differ from particleboard depending on the raw material and process design, so replacement parts should always be specified according to the actual machine.
HUATAO provides replacement components for Chips Screen, Dynascreen and related wood-based panel screening equipment.
The product range includes:
V Roller
V Roll Plate
V Disc
W Roller
D Roller
and other screening-machine spare parts.
HUATAO's published Dynascreen spare-part listings specifically include V Roller and V Roll Plate products for particleboard chip-screening applications, with machine widths such as 1000 mm, 1500 mm and 2200 mm available in its listed configurations.
For replacement orders, HUATAO recommends providing:
This information helps reduce the risk of dimensional mismatch.
The V Roller may not attract as much attention as the complete Chips Screen, Chipper or Flaker.
But inside the screening system, it is one of the components directly involved in the movement and separation of wood particles.
When the V profile remains accurate and the screening gap is properly maintained, the machine can continue operating according to its intended screening arrangement.
When the profile becomes excessively worn, the result may appear as a material-flow or screening problem rather than an obvious spare-part problem.
That is why V Roller and V Disc inspection should be part of regular Dynascreen maintenance.
HUATAO supplies V Rollers, V Discs, V Roll Plates and other wear parts for wood-based panel chips screening systems.
With experience in MDF, HDF, Particle Board and OSB production-line equipment, HUATAO supports customers with replacement parts based on machine dimensions, original samples, drawings and application requirements.
For Dynascreen maintenance or V Roller replacement, supplying the correct profile is just as important as supplying the correct size.
