In OSB production, resin application is more than simply spraying adhesive onto wood strands. The real challenge is to achieve stable resin distribution while the strands continuously move, tumble and mix inside the blending system.
This is where the OSB Drum Mixer and High-Speed Atomized Spray Head become important.
An OSB drum blender is designed to provide a controlled environment for strand movement and resin application. According to Dieffenbacher, drum inclination can be adjusted to influence strand retention time and filling level, while atomizers positioned along the drum length apply a fine resin mist to the strands.
For high-speed OSB production, the spray component is equally important. A well-designed atomization system helps transform liquid resin into a controlled spray pattern so that adhesive can be distributed over moving strands rather than concentrated in a limited area.
An OSB Drum Mixer, also called an OSB Drum Blender, is a continuous blending machine used for applying resin and other liquid additives to wood strands.
Inside the rotating drum, strands are lifted and redistributed continuously. The movement gives the strands repeated opportunities to contact the sprayed adhesive.
The process can be understood as three coordinated actions:
Strand Feeding → Resin Atomization → Continuous Mixing
The drum itself provides the mixing environment, while internal flights or similar conveying elements help lift, tumble and redistribute the strands.
Research on industrial-scale OSB strand blending has shown that drum rotation speed affects strand movement and residence behavior, and that achieving uniform resin dispersion involves balancing strand movement with sufficient exposure time for coating.
This means that drum operation is not simply about moving material from inlet to outlet. It is part of the resin application process.

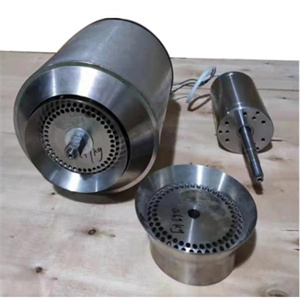

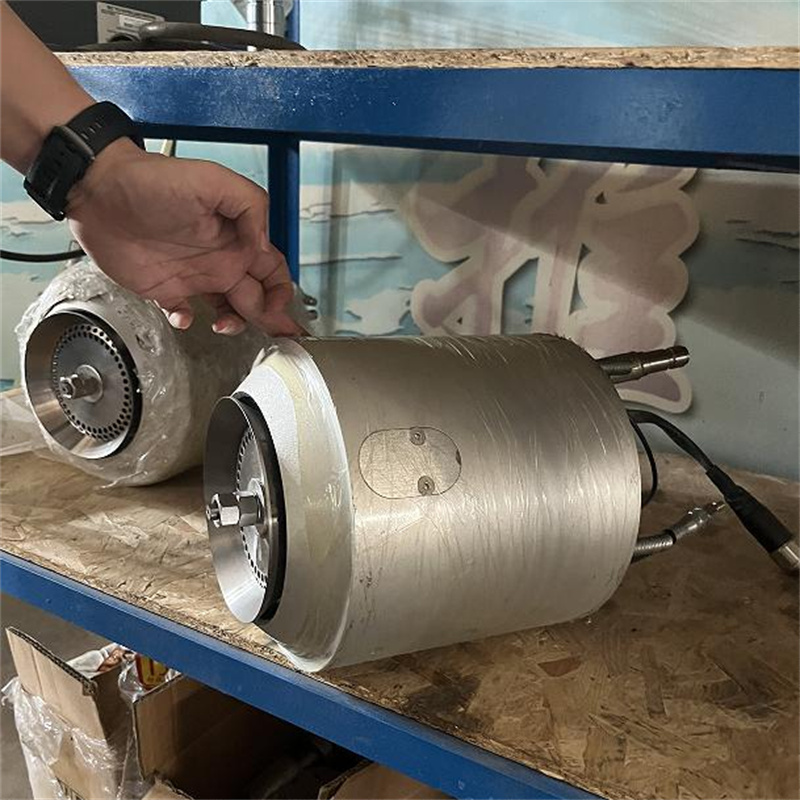

The High-Speed Atomized Spray Head is the component responsible for converting liquid adhesive into a fine and distributed spray.
Inside an OSB drum mixer, atomization directly influences how the resin reaches the moving strands.
An effective spray system should provide:
Modern OSB drum blender designs use atomizers positioned across the drum to create more uniform resin application. Dieffenbacher, for example, describes atomizer tubes installed inside the blender and compressed air used for atomization and cooling.
The result is not simply “more spray.” The objective is better distribution of the available resin across the moving strand flow.
One common mistake in glue application systems is looking at the mixer and spray system separately.
In reality, they form one process.
A high-quality spray pattern cannot fully compensate for poor strand movement. At the same time, a well-designed drum cannot deliver consistent resin distribution if the atomization system has unstable spray performance.
The operating relationship can be simplified as:
Drum Rotation + Strand Movement + Spray Pattern + Resin Flow = Coating Uniformity
The drum controls how the strands move.
The atomized spray head controls how the resin enters that moving material flow.
The process therefore depends on coordination between mechanical movement and liquid application.
Uniform resin coverage is important because the strands ultimately need to form a bonded structure during mat forming and hot pressing.
When resin distribution becomes inconsistent, several issues may appear during production, including:
The importance of uniform resin distribution is also reflected in industrial OSB glue-blending systems, where drum blenders are designed to combine controlled resin dosing with strand movement and mixing.
Therefore, the spray head should not be viewed as an isolated nozzle component. Its condition can influence the entire glue application process.
During long-term operation, resin spray components may experience contamination, buildup or changes in spray performance.
Typical symptoms may include:
Uneven Spray Pattern
The spray no longer covers the intended area uniformly.
Partial Blockage
Resin deposits can restrict flow and change the spray distribution.
Unstable Resin Flow
Variations in supply pressure, viscosity or flow conditions can affect atomization.
Incorrect Spray Direction
A small positional deviation may cause resin to concentrate in one zone instead of following the intended strand flow.
Cleaning Difficulties
Resin buildup around spray components can make maintenance more frequent and reduce process stability.
For this reason, regular inspection of the spray head, nozzle condition, mounting position and resin supply system is essential.
The spray head is relatively small compared with the complete OSB drum mixer, but its process function is significant.
Maintenance should focus on several practical points:
Check the spray pattern regularly.
Changes in the pattern can indicate wear, blockage or unstable operating conditions.
Keep the spray components clean.
Resin deposits may progressively influence flow and atomization.
Inspect connections and mounting.
Loose or misaligned components can change spray direction.
Monitor resin conditions.
Resin viscosity, temperature and supply conditions can influence application performance.
Replace worn parts before spray quality becomes unstable.
Preventive replacement is often easier to manage than troubleshooting irregular glue distribution during production.
For OSB manufacturers, the goal is not simply to operate a drum mixer at high capacity.
The more important objective is to create a stable and repeatable strand coating process.
The OSB Drum Mixer provides:
The High-Speed Atomized Spray Head provides:
Together, they create the foundation for controlled resin blending before the strands enter the forming section.
HUATAO provides equipment, components and spare parts for wood-based panel production lines, including OSB Drum Mixers, High-Speed Atomized Spray Heads, Spray Nozzles, Glue Blender Components and related resin application parts.
For customers maintaining existing OSB production equipment, replacement spray components can be supplied according to equipment configuration, operating conditions and installation requirements.
The focus is not only on supplying a component, but on matching the part with the actual glue application process, resin characteristics and production conditions.
A stable blending system starts with controlled material movement and reliable resin application.
For OSB production lines, the combination of Drum Mixer + High-Speed Atomized Spray Head remains an important part of this process.
